Vacuna in Export Market

At Vacuna Batteries, we take immense pride in our global presence, serving customers in international markets such as Iraq and Nigeria. Our commitment to quality, innovation, and performance has established us as a renowned brand on the global stage. We offer a wide range of reliable and advanced energy storage solutions designed to meet the diverse needs of consumers and businesses around the world.

Deep Cycle Export Download Brochure

Inverter Download Brochure

Empowering Nigeria with Vacuna Batteries

In Nigeria, Vacuna Batteries is your trusted partner for top-tier energy storage solutions. We understand the unique energy needs of this dynamic and vibrant nation. Our advanced batteries cater to various applications, from providing reliable power in remote regions to fueling the growth of urban centers. With a commitment to excellence, we contribute to the sustainable development of Nigeria, ensuring that individuals and industries have access to dependable energy solutions. Join us on the journey to a brighter, more electrified Nigeria with Vacuna Batteries.

Energizing Iraq with Vacuna Batteries

In Iraq, Vacuna Batteries stands as a beacon of reliability and innovation in the energy storage industry. With a deep understanding of Iraq's energy landscape, we offer cutting-edge battery solutions that meet the demands of diverse sectors, from residential and commercial to industrial. Our batteries play a vital role in powering daily life and supporting economic growth in Iraq. Vacuna Batteries is proud to be a part of the nation's energy evolution, providing high-quality, durable, and efficient battery technology to meet the unique requirements of Iraq's people and businesses. Join us in shaping a more electrified future for Iraq with Vacuna Batteries.

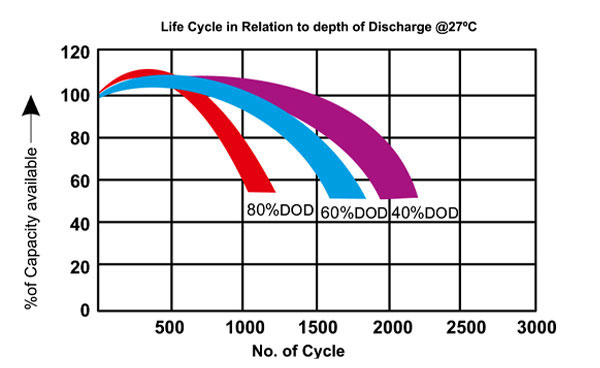

Expected Life

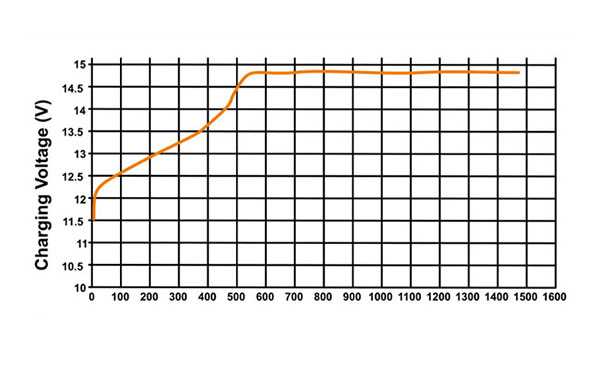

Charging Profile

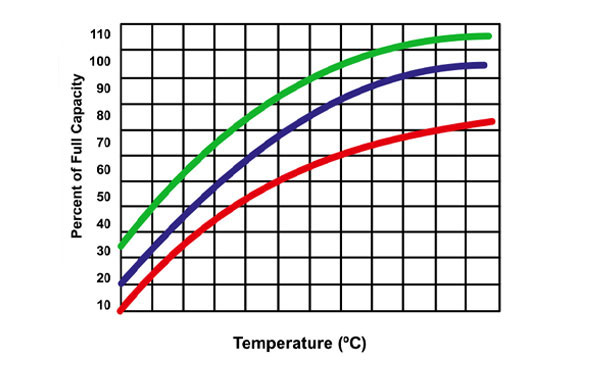

Expected Capacity vs Temperature

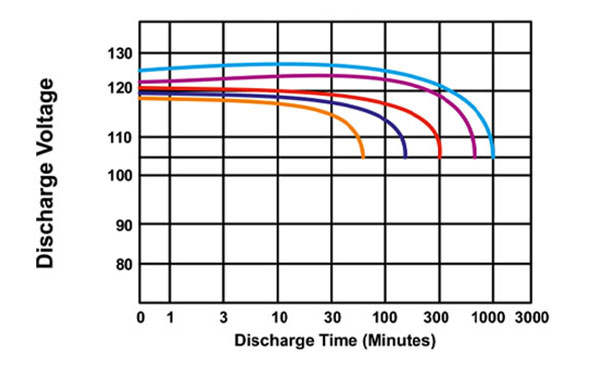

Discharging Characteristics

WhyUs

MORE THAN 25 YEARS of vast experience in battery manufacturing with progressive R&D TEAM ensuring TOP CLASS PRODUCT DELIVERY to our PRECIOUS CUSTOMERS.
Batteries are designed for DEEP DISCHARGE application offering high performance.
HYBRID ALLOY used in both positive and negative plates offering LOW WATER LOSS and LESS MAINTENANCE.
DARAMIC EUROPEAN SEPERATOR with LOW WATER LOSS FEATURE used PROVIDING LESS MAINTENANCE and SAFETY FROM INTERNAL SHORTS.
KETEX World class tubular bag used to make positive plates.
Battery is REFINDED at each process leading to final charged battery HAVING FE(IRON) BELOW 5 PPM.
99.98% PURE LEAD used to make the oxide which plays role of active material contributing to battery back up and performance.
PROPER RATIO OF ACTIVE MATERIAL between negative plate and positive plate, promoting high cycle life and great performance
ACTIVATED CARBON used in negative plate formation leading TO INCREASED CHARGE ACCEPTANCE and allows battery to COME OUT FROM DEEP DISCHARGED STATE easily.

C20 Solar

Model	VSTB-10000	VSTB-15000	VSTB-20000	VSTB-22000	VSTB-24000	VSTB-27000	VSTB-30000
Parameters	100Ah	150Ah	200Ah	220Ah	240Ah	270Ah	300Ah
Container	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP
Separator	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic
Nominal Voltage	12V	12V	12V	12V	12V	12V	12V
No. Of Cells	6	6	6	6	6	6	6
Design Life	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years	6 Years
Nominal Capacity(20°C)
20 Hr Rate (10.5)	100Ah	150Ah	200Ah	220Ah	240Ah	270Ah	300Ah
10 Hr Rate (10.5V)	88Ah	132Ah	176Ah	193.6Ah	211.2Ah	237.6Ah	264Ah
Self Discharge	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm
Operating Temperature Range
Discharge	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Charge	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Storage	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Max. Discharge Current 77°F(25°C)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)
Short Circuit Current	100A	150A	200A	220A	240A	240A	300A
Charge Methods:			CCCV 77°F(25°C)
Charge Methods:			14.4-14.7V
Maximum Charging Current	10A	15A	20A	22A	24A	27A	30A
Temperature Compensation			75mV/300moh
Standby Use	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V
Dimension	495x190x430	495x190x430	495x190x430	495x190x430	495x190x430	495x190x430	495x190x430
Weight+-3% Kgs	53	58	64	66	69	72	78

C10 Solar

Model	VAC₁₀-5000	VAC₁₀-7500	VAC₁₀-10000	VAC₁₀-15000	VAC₁₀-20000	VAC₁₀-22000	VAC₁₀-24000	VAC₁₀-26000	VAC₁₀-28000	VAC₁₀-30000
Parameters	50Ah	75Ah	100Ah	150Ah	200Ah	220Ah	240Ah	260Ah	280Ah	300Ah
Container	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP	PPCP
Separator	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic	PE Daramic
Nominal Voltage	12V	12V	12V	12V	12V	12V	12V	12V	12V	12V
No. Of Cells	6	6	6	6	6	6	6	6	6	6
Design Life	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years
Nominal Capacity
10 Hr Rate (10.5)	50Ah	75Ah	100Ah	150Ah	200Ah	220Ah	240Ah	260Ah	280Ah	300Ah
3Hr Rate (10.8V)	36.75	55.12	73.5	110.25	147	161.5	176.4	191.1	205.8	220.5
Self Discharge	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm	<3%Pm
Operating Temperature Range
Discharge	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Charge	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Storage	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C	0~55°C
Max. Discharge Current 77°F(25°C)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)	600A(3s)
Short Circuit Current	100A	100A	100A	150A	200A	220A	240A	260A	280A	300A
Charge Methods:			CCCV 77°F(25°C)
Charge Methods:			14.4-14.7V
Maximum Charging Current	5A	7.5A	10A	15A	20A	22A	24A	26A	28A	30A
Temperature Compensation			75mV/300moh
Standby Use	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V	13.8-14.2V
Weight+-3% Kgs	20	28	54	58	66	68	70	73	78	83

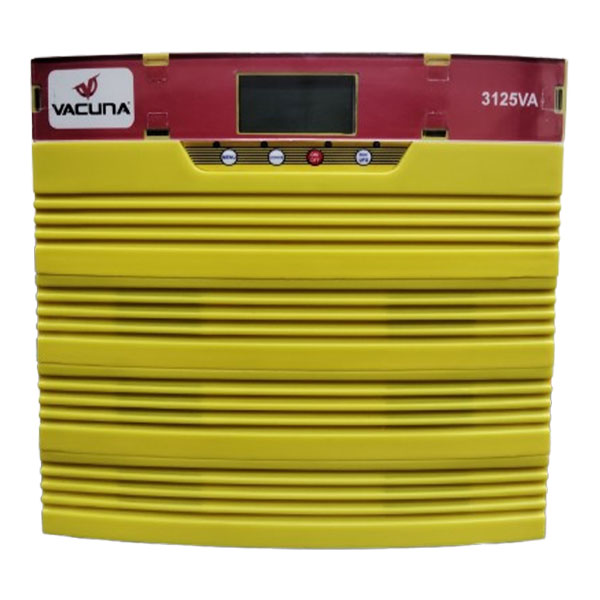

SALIENT FEATURES NORMAL INVERTER & HOME UPS

Product Features

DSP Based Design with absolute and stable Sine Wave output voltage and frequency
State of the art MOSFET based PWM technology with greater efficiency at lower cost with Dynamic Stability
Over Temperature Protection
More back-up being a Sine Wave UPS (ASIC Control)
Three stage charging (TSC) suitable for all types of battery charging.
Deep Discharge Battery charging from A.C. Mains
User friendly, feather touch control and selection switches with LED indication on front panel.
Protection such as Mains Fuse Trip, Overload, Short Circuit, Battery low, Over Temperature indication with buzzer as well as display on LCD available.

AC Mains available, battery charging /charged and its voltage indication provided on LCD display.
Battery type charging selection (Tubular /Flat /SMF/GEL)
Grid charging enable /disable options which makes it fuly compatible with solar.
Selectable battery charging current (High /Low).
Resettable AC circuit breaker which reduce service calls.
Selectable mode for UPS/lnverter.
Bypass switch in case of any fault
Comprehensive LCD Display
Resettable A.C. fuse

Applications

Power Back-up for House hold, Small shops, Small offices etc.
Small Water pumps and all motor based small applications
TV Sets, Fans, Tube Lights, computers etc.
